Renovating multi-family complexes often means stripping away old vinyl and carpet and pad products—and with them, exposing the underlying gypsum underlayment. Unfortunately, these substrates rarely meet the demands of today’s hard surface flooring installations. In this guide, we break down the common challenges of repairing gypsum underlayments, explain why proper remediation is critical, and outline effective solutions using FloorPrep by Dependable products.

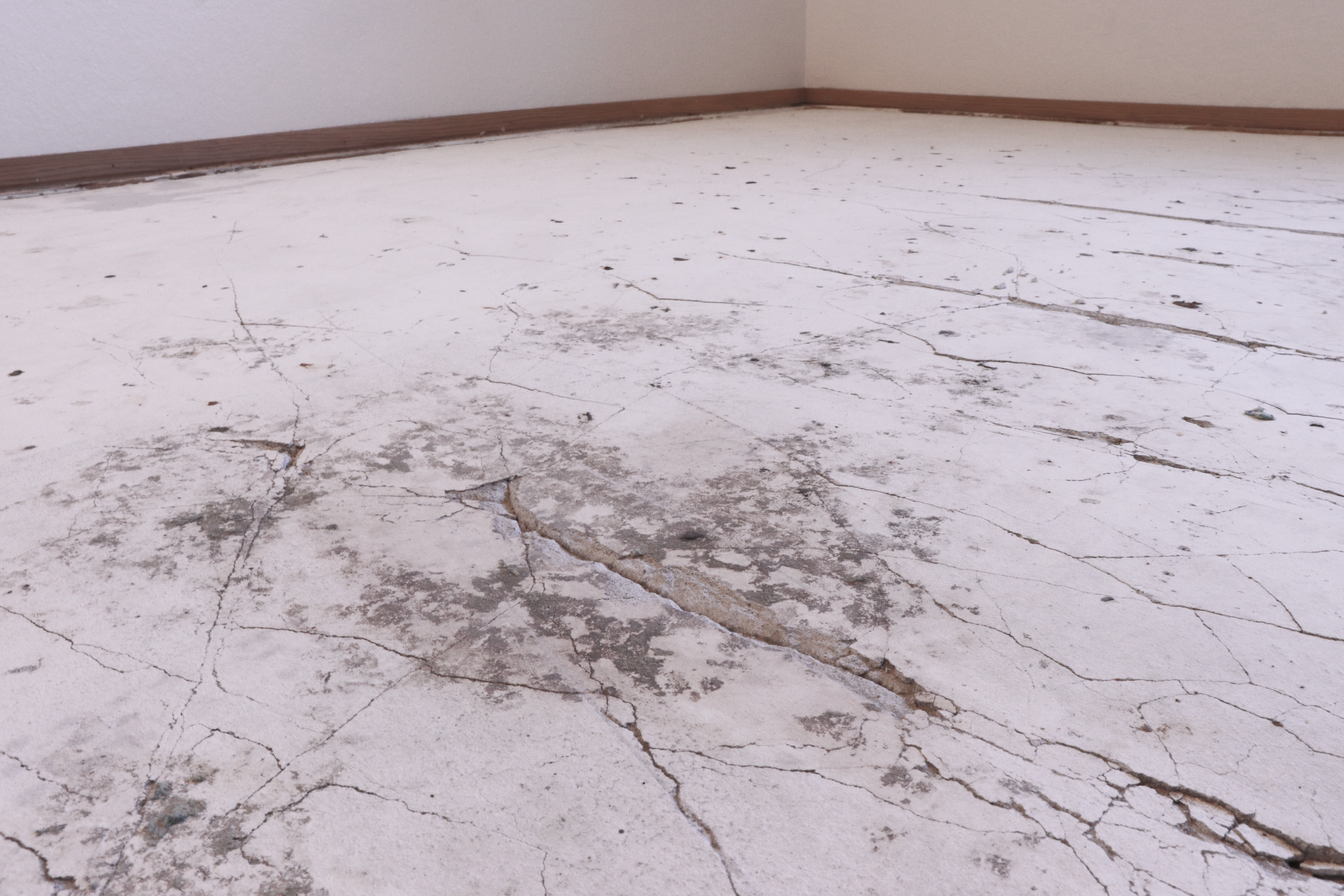

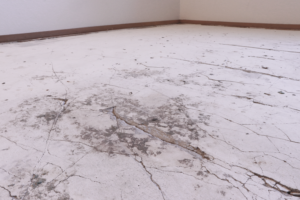

Understanding the Challenges of Old Gypsum Underlayments

During renovations, damaged or aged gypsum underlayments can present several issues:

1. Adhesion Failures:
   The soft, chalky nature of old gypsum underlayment tends to pull moisture from adhesives or mastics before they can bond. Without proper adhesion, the finished flooring lacks a secure bond, often leading to premature failure.

2. Visible Surface Defects:
   Cracks and blemishes in the underlayment may transfer through to flexible flooring products—such as vinyl composition tile (VCT) or luxury vinyl plank (LVP)—once the adhesive dries, compromising aesthetics and performance.

3. Insufficient Structural Support:
   Gypsum underlayments that have deteriorated over time do not offer the necessary compressive strength to handle high foot traffic, heavy furniture, or point loads for today’s modern resilient floor coverings. This lack of durability can ultimately result in a floor that fails under stress.

Despite its prized fire-retarding and sound-deadening properties, gypsum concrete often requires repair before installing new floor coverings due to substandard quality control during the original installation.

Diagnosing the Deterioration

Before embarking on a repair, it’s essential to identify the cause of deterioration:

• Material Composition:
  Gypsum, along with other lightweight insulating concretes like cellular, vermiculite, or perlite, tends to be soft and porous. Such substrates often cannot support a cement-based patch or underlayment system without modification.

• Underlying Issues:
  Ask, “Why is the material deteriorating?” A weak or unstable floor may be a symptom of poor initial construction or prolonged exposure to moisture and heavy loads. Correcting these underlying issues—sometimes with the help of a structural engineer—is crucial before any repair work begins.

Recent industry research, including articles published on renovation-focused platforms, highlights that successful repair hinges on establishing a clean, well-prepared substrate. Removing dust, debris, and loose material while ensuring the surface is properly primed is a consistent recommendation from flooring experts.

FloorPrep by Dependable: Tailored Solutions for Gypsum Repair

Dependable’s FloorPrep product library offers a comprehensive range of UL-approved gypsum-based and hybrid products specifically engineered to repair both old and new gypsum installations. Here’s a look at some key solutions:

For Old Existing Gypsum Underlayment

• Skimflow® LCB:
  A fiber-reinforced self-leveling underlayment, ideal for leveling cracked, uneven surfaces and restoring the structural integrity of aged gypsum floors.

• Polyskim®:
  A premium gypsum-based skimcoat designed for patching and smoothing. The one-component system reduces installation time while ensuring a consistent, durable repair.

For New Gypsum Requiring Additional Preparation

• Skimflow® NP:
  A no-prep, hybrid self-leveling underlayment that is perfect for quickly correcting rolling or uneven surfaces prior to installing the finished floor covering.

• Polyskim®:
  Again, serving as an excellent option for skim coating to achieve a uniform, smooth substrate.

Special Cases: Cracked Gypsum Over Acoustical Mats

In instances where you encounter cracked gypsum over sound mats, Dependable recommends our Consolicrete epoxy repair screed. This system is engineered to address the unique challenges of repairing cracked substrates while providing a robust base for subsequent flooring installation. For detailed application guidelines, consult the Consolicrete technical data sheet available on the FloorPrep website.

Best Practices for Repairing Gypsum Underlayments

A successful repair starts with meticulous preparation. Dependable recommends the following procedure:

1. Clean the Surface:
   Vacuum the floor thoroughly to remove any loose material, contaminants, or dust.

2. Check for Porosity & Seal or Prime the Floor:

   • For damaged or porous surfaces, apply a suitable sealer or primer such as GSL Sealer or Primer P360.

   • Multiple coats may be necessary to fill and seal the porous substrate. The primer penetrates the surface, creating a sealed membrane that locks in the substrate’s texture and promotes a strong bond with adhesives.

   • For new gypsum requiring additional prep, use Primer P360 diluted at approximately a 3:1 ratio (water to primer). Apply with a push broom using a back-and-forth motion to work the primer into the surface, ensuring the substrate remains wet for at least 15 minutes. For highly porous floors that dry too quickly, further dilution or a second coat may be necessary.

3. Perform a Tape Test:
   Once the sealer or primer has completely dried, conduct a tape test to verify that the sealer or primer adheres well. If the primer peels off, stop and consult Dependable Technical Services.

4. Apply the Underlayment or Patch:
   With a sound, well-primed substrate, proceed with the appropriate patching or self-leveling underlayment installation.

It is also important to ensure that the floor is structurally sound (L/360) prior to repair. Deflection or under-designed floors can significantly impact the repair’s longevity. In suspect cases, a structural engineer’s inspection is advised.

Expert Insights and Industry Research

Recent research from the web underscores that many issues with gypsum underlayment repair stem from inadequate surface preparation and incompatible material chemistries. Industry experts recommend using gypsum-based repair products to ensure chemical compatibility, reduce the risk of delamination, and promote a durable bond between the substrate and the finished floor.

For instance, technical articles on leading renovation and flooring websites consistently emphasize that a properly primed and sealed surface is key to preventing moisture absorption from adhesives—one of the primary causes of repair failure. By following these best practices and utilizing products designed specifically for gypsum repair, contractors can extend the life and performance of their flooring installations.

All repairs to UL Fire-Rated gypsum underlayments must be made using products that are UL-listed or classified for use in fire-rated assemblies. Using non-rated or incompatible materials may compromise the integrity of the fire rating and violate code compliance. Always refer to the specific UL design and product manufacturer guidelines to ensure proper fire-rated repair methods and materials are used.

Conclusion

Repairing gypsum underlayments may seem daunting, but with the right approach and products, you can restore a solid, durable underlayment that’s ready for modern hard surface installations. Whether you’re addressing an old, deteriorated gypsum substrate or a newer floor that needs leveling, FloorPrep by Dependable offers a range of solutions—from UL Rated self-leveling underlayments to premium skim coatings—that ensure lasting performance.

For more detailed product information, application tips, and technical support, visit the FloorPrep Product Library.

Invest in proper preparation today to enjoy flawless flooring installations tomorrow.
